Deep material priors

Multimodal vision transformer foundation models for electron microscopy, with Toyota Research Institute.

projects

Current project. A $1.2M program with the Toyota Research Institute to build physics-aware foundation models for materials characterization.

Most machine learning in electron microscopy is still built one task at a time: a network for strain, another for orientation, another for thickness, each trained on its own small dataset. Deep material priors aims to replace that with a single pretrained foundation model that has learned what diffraction from real materials looks like, enabling fast-training of output heads for many downstream tasks or to be used as a prior inside physics-based reconstructions.

The model is a multimodal transformer:

  • A vision transformer (ViT) encodes 4D-STEM diffraction patterns, alongside encoders for crystal structure, chemical composition, X-ray diffraction data, etc.
  • A fusion backbone that combines the modalities into a shared representation.
  • Self-supervised pretraining with masked autoencoding and super-resolution objectives, followed by supervised heads for physical quantities such as sample thickness and crystal orientation.
The diffraction backbone. (1) A vision transformer encodes each diffraction pattern as a grid of patches; plain, windowed, and Swin attention are all under evaluation. (2) Self-supervised pretraining corrupts unlabeled patterns by downsampling, masking patches, or adding noise, and trains the model to reconstruct the clean pattern. (3) The pretrained backbone then feeds downstream tasks such as orientation mapping, strain mapping, and phase identification.

Training data comes from large-scale multi-slice simulations across crystalline and amorphous structures, passed through a detailed augmentation pipeline that models real detectors, noise, backgrounds, and experimental geometry, so that the model transfers directly to experimental data. Training uses DDP/FSDP and is performed on the Perlmutter system at NERSC.

Early results

Small pretaining runs are promising and already produce a model that can fill in missing information in sparse, low-dose diffraction data. Initial testing uses the pre-trained backbone and a simple output head to center diffraction patterns (a non-trivial task because the brightest beam is not always the central beam), which is an instrumental step in pre-processing multi-angle precession electron diffraction (MAPED) data.

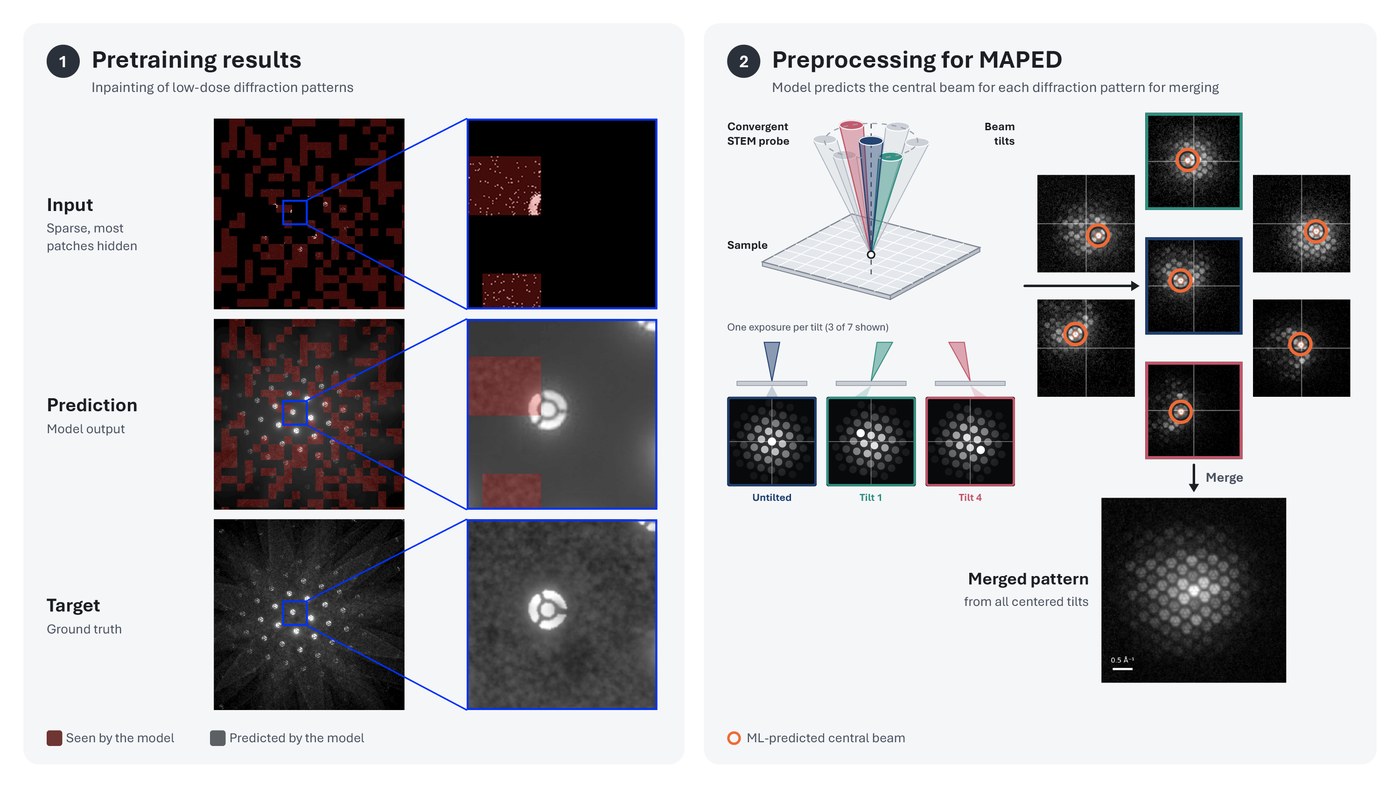

(1) Inpainting a low-dose diffraction pattern after pretraining. The model sees only the red patches of the input, with most of the pattern hidden, and predicts the rest; the zoomed insets compare a predicted disk with the ground truth. (2) Preprocessing for MAPED: the model predicts the central-beam position (orange) in each diffraction pattern of a beam-tilt series, so that the exposures can be centered and merged into a single pattern.

Pretrained models as priors

The longer-term goal of this project is to use the pretrained representation as a deep material prior inside physics-based reconstructions, in the same way my deep generative priors for ptychography regularize the object. The difference is that the prior is learned once, across many materials, and will help regularize the reconstruction towards only physically-plausible objects given information that is known about the material.

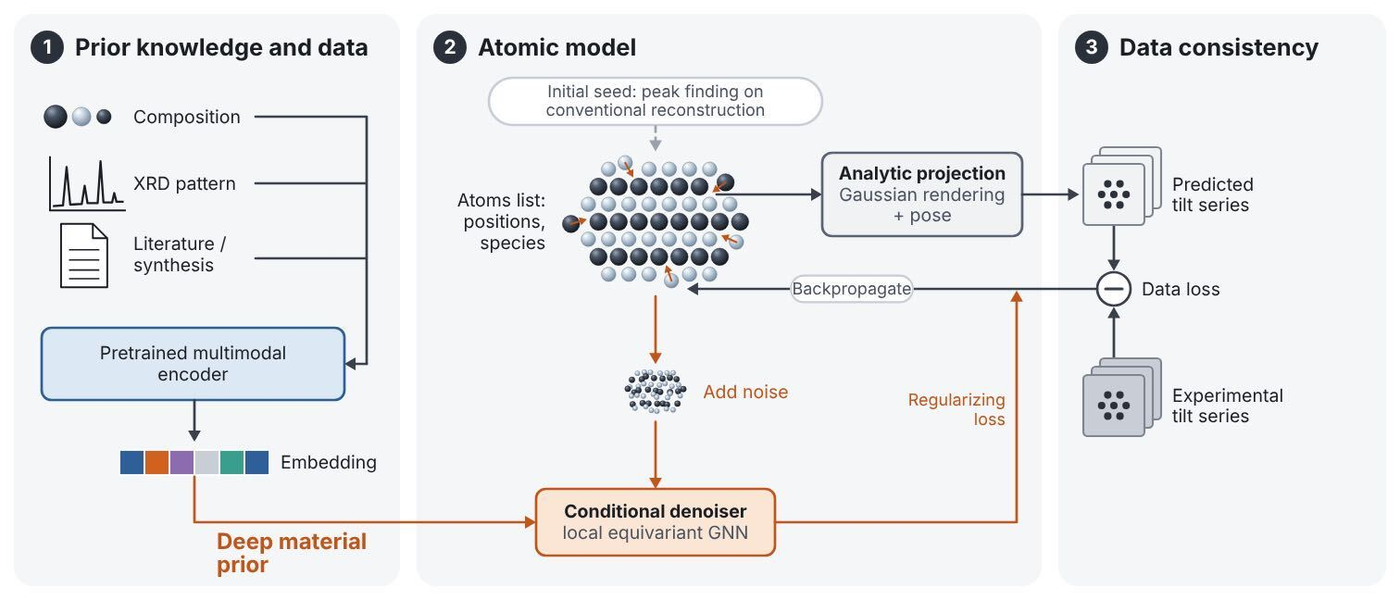

Schematic of a deep material prior for atomic-resolution tomography. (1) A pretrained multimodal encoder turns prior knowledge about the sample, such as composition, an XRD pattern, and synthesis notes, into an embedding. A conditional denoiser is trained as an output head which converges to physically viable atomic structures for a given embedding. (2, 3) Gaussian splatting is performed to reconstruct an atmoic resolution tomography dataset. A regularizing loss from the denoiser is added to the data loss and conditions the reconstruction towards physically viable samples that reproduce experimental observations.
